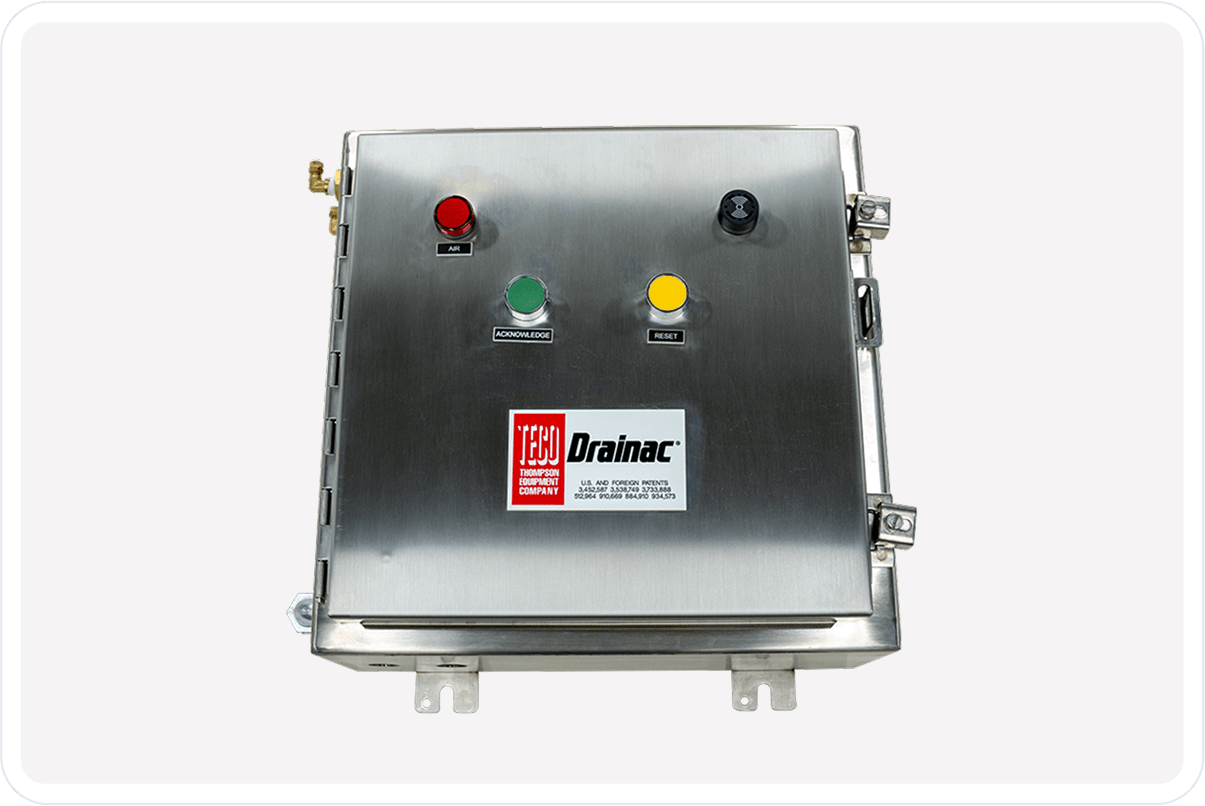

TECO Drainac® Plant Utility Integrity Monitor (PIM)
The Plant Utility Integrity Monitor (PIM) is a Drainac® accessory that monitors both stockline and plant air supply pressures and protects the Drainac® from back-flow events.
Product Summary
Download Product Summary SheetProtect your valuable Drainac® instrument from damage due to unintentional loss of plant power or air supply utilities.
TECO has made a commitment to continually advance the technology in our Stock Prep line of products. Our latest addition is the Plant Utility Integrity Monitor (PIM) accessory for Drainac® Automatic Online Freeness Analyzer systems. The PIM is designed to monitor both stockline and plant air supply pressures. Should plant air supply pressures consistently fall below minimum required levels for proper Drainac® operation, the PIM will act to isolate the Drainac® from potentially damaging and costly stockline back-flow events.
The PIM will simultaneously alarm both locally (visual and audible alarms) and remotely to notify operators that an utility integrity event has occurred.
Instrument Features
- Designed for F1000 series Stockline and F3000 series Low Pressure Drainac® Automatic Online Freeness Analyzer systems.
- Designed to be retrofitted to existing Drainac® systems currently deployed in the field
- Designed to fail in isolate mode if a loss of plant electricity occurs.
- Local visual and audible (80dB) alarms
- Remote Alarm Contact Closure Output
- Designed for both 110 and 220 VAC systems
- Adjustable pressure levels
- Stainless Steel NEMA 4X Enclosure
Applications
The PIM is designed to monitor both stockline and plant air supply pressures. Should plant air supply pressures consistently fall below minimum required levels for proper Drainac® operation, the PIM will act to isolate the Drainac® from potentially damaging and costly stockline back-flow events.
Specifications
Download Spec Sheet| Electrical | 100-240 VAC (50/60 Hz) 2.1-1.5 A |
|---|---|
| Instrument Air | -40o C dew point @10 psi greater than maximum expected stockline pressure. 100 PSI maximum |
| Enclosure | Stainless Steel NEMA 4X 16”x16”x8” |
| Adjustable Differential Trigger Pressure | 3-40 PSID, nominally set to 10 PSID |
| Pressure Working Range | 3-150 PSI |
| Proof Pressure | 150 PSI |
