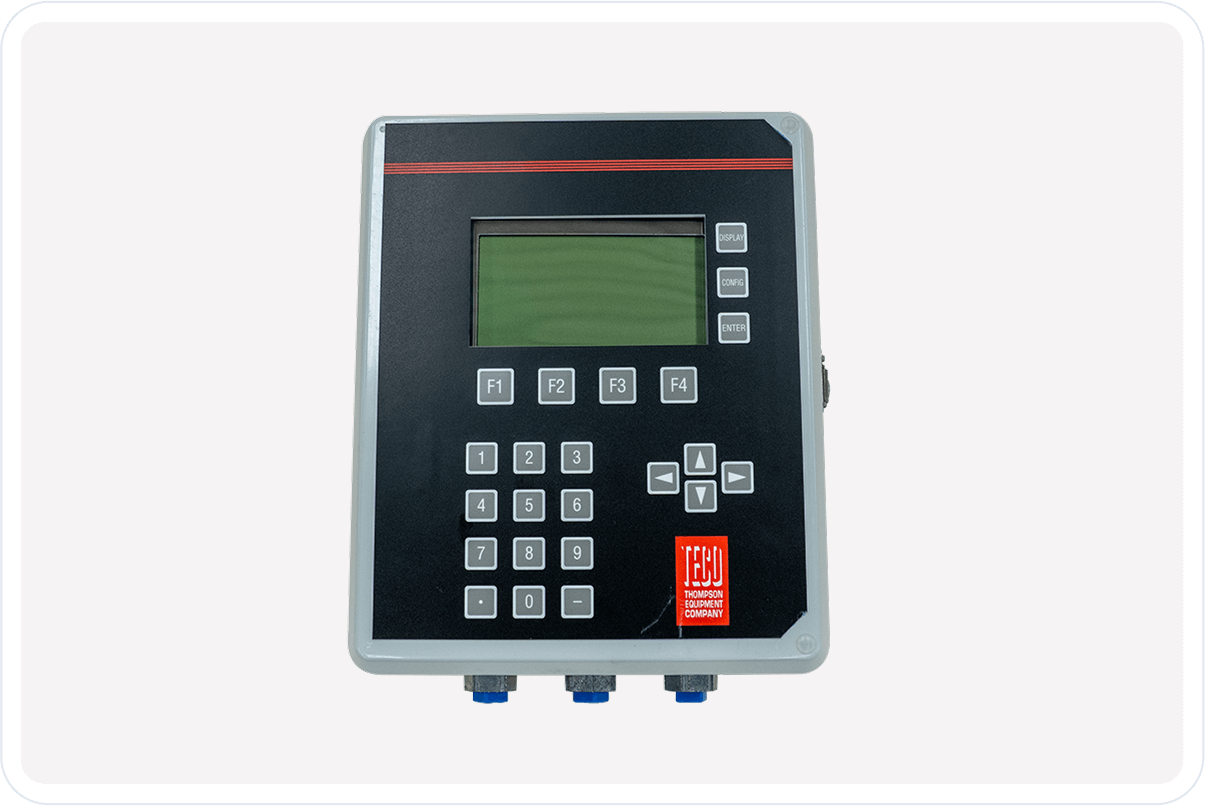

TECO TMC-6000 Transmitter
The TMC-6000 Microprocessor Consistency Transmitter is designed as the backbone for the TECO StockriteTM family of consistency instrumentation; to be used as the common electronics support platform for all of TECO’s family of consistency probes.
Product Summary
Download Product Summary SheetTransmitter for use with the TECO family of consistency sensors.
Features & Benefits
- Excellent Repeatability – microprocessor based electronics.
- “Quick Start” – Predefined Calibration Procedure – for ease of set-up and calibration.
- Active Velocity Compensation – increased application range as production changes.
- Embedded Control Option – optimal dilution feed forward control.
- Multiple Calibrations – ability to hold up to (10) ten different calibration settings for different grades / furnishes.
- NEMA 4X Enclosure – remotely mounted enclosure keeps the electronics safe from vibration, heat, moisture in the field.
- Digital Communications – easily integrates into any DCS platform.
Specifications
Download Spec Sheet| Display | Variable contrast graphical LCD |
|---|---|
| Electronics | Microprocessor based |
| Analog Input(s) | (1) - 4-20 mA - flow; (3) - 4-20 mA - optional |
| Communications | (1) full duplex - choice of protocol: RS 232 / IEEE 422 / IEEE 485 |
| Power | 115 / 220 VAC, 60 Hz |
| Temperature Limits | 32° - 140°F operating |
| Enclosure | NEMA 4X |
| OPTIONS | Dilution PID controller output; Multiple inputs for process influence compensation; Custom configuration ability |
